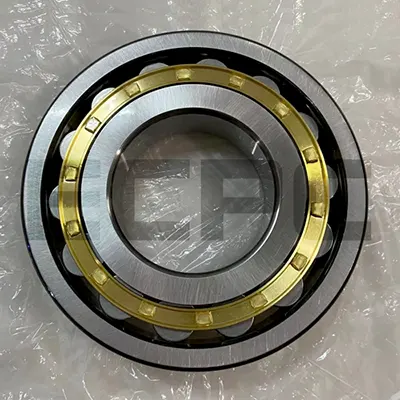

Bearing N307ECP is a basic and widely used item of Cylindrical Roller Bearing.
Basic Specifications
Part Number | N307ECP |
Bearing Type | Cylindrical Roller Bearing |

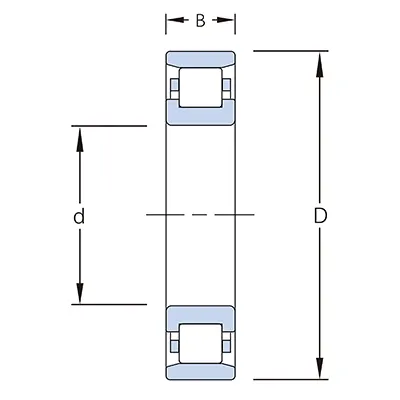

d - Inner Dia. | 35 mm 1.378 in |
D - Outer Dia. | 80 mm 3.1496 in |
B - Width | 21 mm 0.8268 in |
Load Ratings | Static 56.7 kN Dynamic 67.5 kN |
Reference Speed | 8550 rpm |
Weight | N/A kg N/A lbs |
Appendix
GOST Code / Cross reference P/N | 2307，N307E.TVP2 |
Grade | P0, P6, P5 RBEC 1, RBEC 3, RBEC 5 |
Clearance | CN or manufacture per order's specification. |
Other Manufacturers | SKF, NSK, NTN, FAG, KOYO, HRB, ZWZ, LYC, TMB |
Material | GCr15, 52100, 100Cr6, 1.3505 |
Cage | Depend on the suffix of Part Number. |
Packaging | Depend on order's requirements. |
Port | Shanghai, CHINA |
Other features | N/A |
