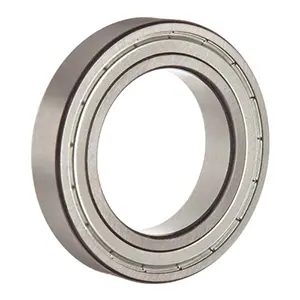

Bearing W6304-2Z is a basic and widely used item of Deep Groove Ball Bearing.
Basic Specifications
Part Number | W6304-2Z |
Bearing Type | Deep Groove Ball Bearing |

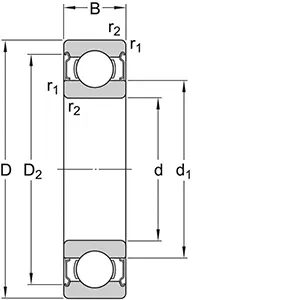

d - Inner Dia. | 20 mm 0.78740157480315 in |
D - Outer Dia. | 52 mm 2.0472440944882 in |
B - Width | 15 mm 0.59055118110236 in |
Load Ratings | Static 7.8 kN Dynamic 13.8 kN |
Reference Speed | 17000 rpm |
Weight | N/A kg N/A lbs |
Appendix
GOST Code / Cross reference P/N | N/A |
Grade | P0, P6, P5 RBEC 1, RBEC 3, RBEC 5 |
Clearance | CN or manufacture per order's specification. |
Other Manufacturers | SKF, NSK, NTN, FAG, KOYO, HRB, ZWZ, LYC, TMB |
Material | GCr15, 52100, 100Cr6, 1.3505 |
Cage | Depend on the suffix of Part Number. |
Packaging | Depend on order's requirements. |
Port | Shanghai, CHINA |
Other features | N/A |
