629-Z Deep Groove Ball Bearing - HRSZ Bearing 环润神州轴承

We specialized in manufacture bearings and owned a robust supply chain of bearing products. Servicing our clients from vehicle industry and related companies since we established. This page is about our standard series products, we offer a series type of this bearings to overseas markets, and also offered our domestic clients a convenient choice to maintain their equipment.

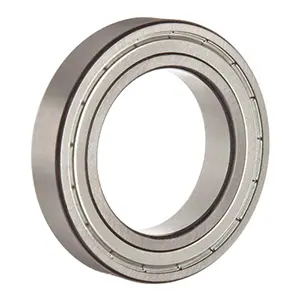

Bearing 629-Z is a basic and widely used item of Deep Groove Ball Bearing.

Product information

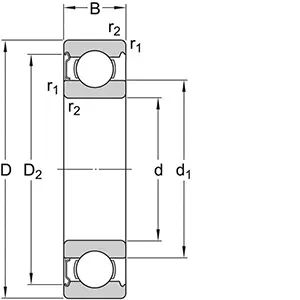

bearing CAD drawings or description of 629-Z

Basic Specifications

Part Number	629-Z
Bearing Type	Deep Groove Ball Bearing
d - Inner Dia.	9 mm 0.35433070866142 in
D - Outer Dia.	26 mm 1.0236220472441 in
B - Width	8 mm 0.31496062992126 in
Load Ratings	Static 1.96 kN Dynamic 4.75 kN
Reference Speed	38000 rpm
Weight	N/A kg N/A lbs

Appendix

GOST Code / Cross reference P/N	N/A
Grade	P0, P6, P5 RBEC 1, RBEC 3, RBEC 5
Clearance	CN or manufacture per order's specification.
Other Manufacturers	SKF, NSK, NTN, FAG, KOYO, HRB, ZWZ, LYC, TMB
Material	GCr15, 52100, 100Cr6, 1.3505
Cage	Depend on the suffix of Part Number.
Packaging	Depend on order's requirements.
Port	Shanghai, CHINA
Other features	N/A
